Soler & Palau ACD Motorized VOLUME AIR Damper
Our Price: $401.94

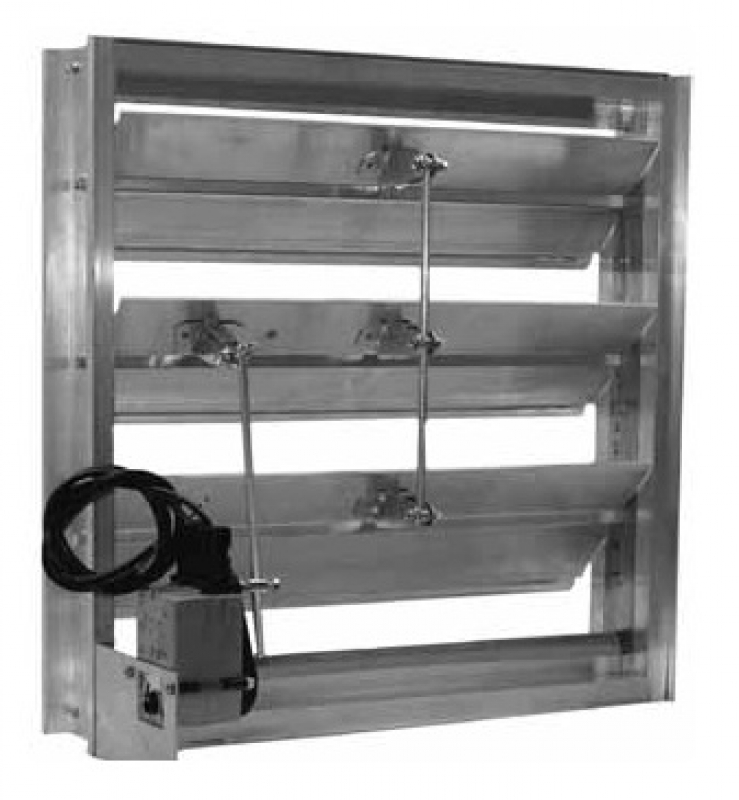

Soler & Palau VOLUME AIR CONTROL Motorized Shutter Damper. Aluminum HAT Channel. Exhaust or Supply. Belimo TF120-S PO/SC with End Switch Motor
- Model ACD Dampers are heavy duty motorized Volume Control Dampers.
- Use for Exhaust or Supply applications. Can be mounted Vertical or Horizontal - Wall and Curbs
- Extruded Aluminum Damper with an internally mounted factory installed Power Open / Spring Close motor with End Switch.
- Sizes available – 12” W x 12” H to 48” W x 48” H.
- Maximum Free Area Velocity – 3,500 fpm. Max Pressure 4"wg
- Frame - 5” deep x .100 Extruded Aluminum Hat Channel
- Blades - 7” wide x .080 Extruded Aluminum. Parallel Blade action
- Blade Seals - Extruded TPV ( -70 to +280 F)
- Center Pivot blades for full 90 deg rotation. Parallel Blade Action
- “MIG” welded corners. 1 1/2" Flanged Frame
- Stainless Steel Jamb Seals. Help keep out Light, Air, and Moisture
- Nylon Bushings
- 3,500 fpm Maximum Velocity / 4” wg Maximum Pressure
- -22 to 122 F Degree Maximum Temperature
- Belimo TF120-S Power Open / Spring Return Motor with End Switch
- 120 / 240V Internally Mounted Motor
>>>> Click to view ACD MOTOR SHUTTER DATA SUBMITTAL Sheet
ACD12 12X12 ACD16 16X16
ACD20 20X20 ACD24 24X24
ACD30 30X30 ACD36 36X36
Contact Customer Service 888-257-3719 for Pricing & Information
ACD42 42X42 ACD48 48X48
